Slim Jim 10

At only 11.5mm wide, Slim Jim 10 is a miniature profile designed for those tricky little spots - stair nosings, small cabinetry details and more. With the Spec Series Slim 9.6W IP65 LED strip, Slim Jim 10 can even be used in exterior applications.

Features
  • New Zealand designed and made.

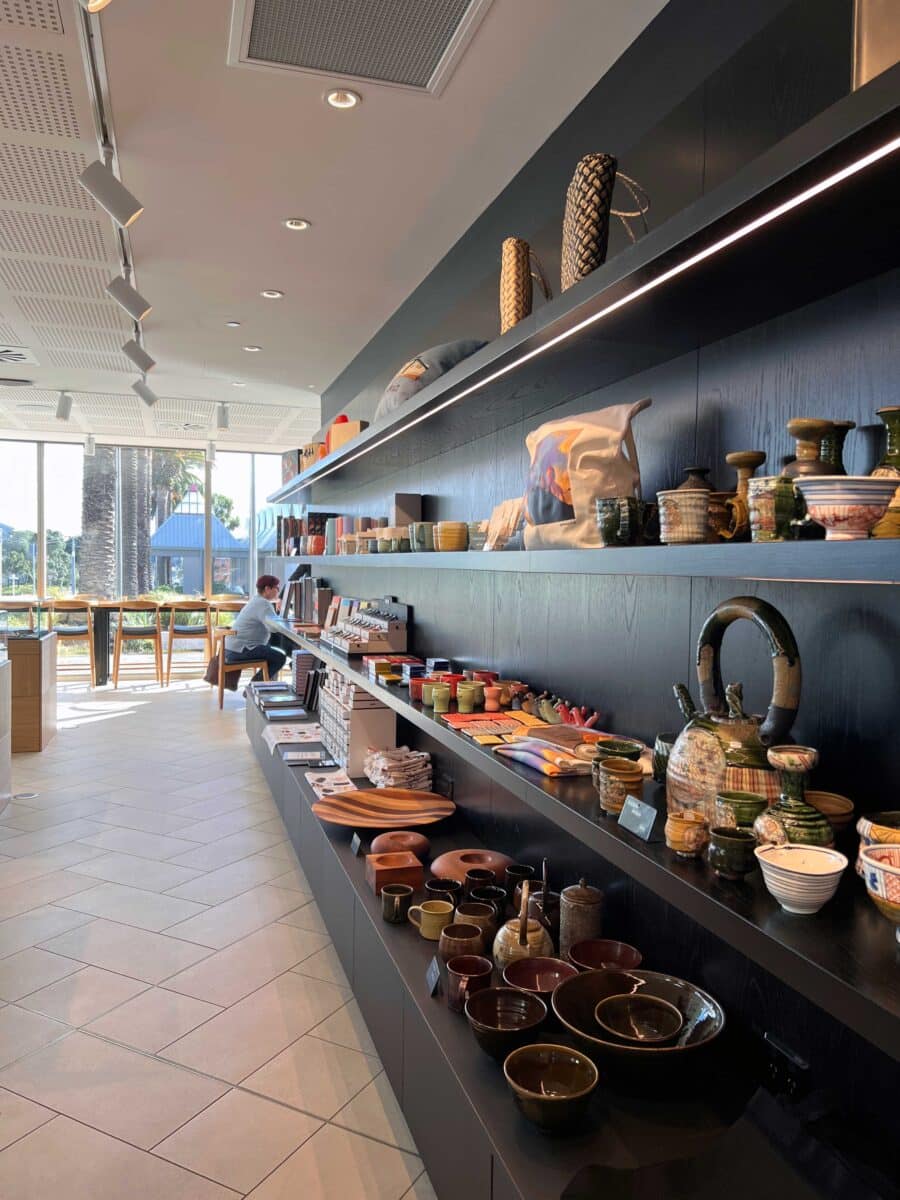

  • Made for task lighting in kitchen cabinetry, lighting for shelving or display units.
  • Can be powder coated.
Additional Information
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Various LED strip colour temperature and wattage options.
  • Installation: Interior and exterior (with IP65 rated LED strip).
  • Material: Aluminium body, polycarbonate diffuser, AES plastic end caps.
  • Power Supply: 24V DC - remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Recessed
  • Surface mounted
Diffuser Options
  • Opal polycarbonate
Profile Finish Options
  • Natural silver anodised
    $item['profile_finish_option']
  • Textured White powder coat
    $item['profile_finish_option']
  • Textured Black powder coat
    $item['profile_finish_option']
  • Custom powder coat colours
    $item['profile_finish_option']

LED Strip Options

Please take particular care when selecting LED strips as not all options are available for all profiles. Click on each LED strip series below to display the options suitable for the profile.

Other LED strip options may be available upon request. Please consult your local distributor for further information.

All LED strip lumen values mentioned in the tables below refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.

Spec Series Slim

Spec Series Slim
Spec Series Slim LED strips are perfect with our shallow profile for dot-free lines of light.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-04-27-SLIM
SPEC-04-30-SLIM
SPEC-04-40-SLIM
4W
2700K
3000K
4000K
300
320
330
300
5M
IP20, IP65
SPEC-9.6-27-SLIM
SPEC-9.6-30-SLIM
SPEC-9.6-40-SLIM
9.6W
2700K
3000K
4000K
720
785
810
300
5M
IP20, IP65
SPEC-14-27-SLIM
SPEC-14-30-SLIM
SPEC-14-40-SLIM
14.W
2700K
3000K
4000K
980
1050
1080
300
5M
IP20
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-9.6-30-SLIM-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Slim LED Strip

Specification Sheet

Installation Instructions

Photometric File

Photometric tests are conducted with a 500mm long LED strip, inside a silver anodised profile and diffuser as mentioned in the file.

Please note that black or dark powder coated extrusions will reduce delivered lumens by approximately 10%.

Please consult your local distributor if you require assistance with photometric files.
