Nellie Neon 23

View on Offspring Profiles website

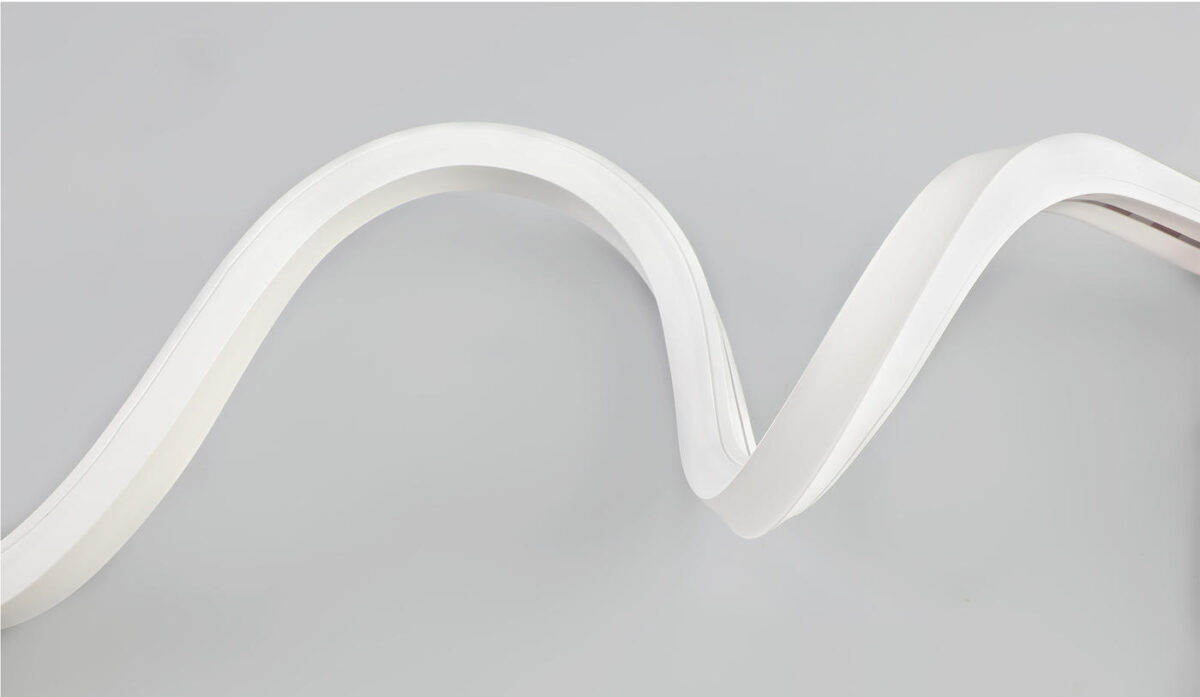

Nellie Neon is a range of flexible LED neon products, including white and RGBW LED options. The Nellie Neon 23 is a RGBW “dual-bend” white-light neon that can be bent in two axes which allows for curves in two planes - great for complex applications such as curved joinery or walls. With cut increments at 62.5mm and various mounting accessories, Nellie Neon is incredibly versatile.

Features
  • Flexible in two axes.
  • RGBW LEDs.
Additional Information
  • Customised lengths and configurations, made to measure.
  • Installation: Interior and exterior.
  • Material: Silicon casing
  • Power supply: 24V DC - remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Nelly Neon 16 by Offspring Profiles
Nelly Neon 23 by Offspring Profiles
Mounting Options
  • Ceiling mounted
  • Surface mounted
Diffuser / Optic Options
Profile Finish Options
  • Natural silver anodised
    $item['profile_finish_option']
  • White powder coat
    $item['profile_finish_option']
  • Black powder coat
    $item['profile_finish_option']
  • Custom powder coat colours
    $item['profile_finish_option']
Nellie Neon 23 by Offspring Profiles
Nellie Neon 23 by Offspring Profiles
Nellie Neon 23 by Offspring Profiles
Nellie Neon 23 by Offspring Profiles

LED Options

Other LED strip options including other optics may be available upon request. Please consult your local distributor for further information.

Code
Watts per metre
Colour temp.
Lumens per metre
Cutting increments
Beam
Max. length per feed
Protection
NN23-18-RGBW
18W
RGB+3000K
190 @ 3000K, 550 with all channels on
62.5mm
120°
5M
IP65/IP67* & IK06
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
*IP65 rating is achieved with end cap and feed accessories below. IP67 rating is achieved with die-cast factory ends and feeds. Please allow a longer lead time for die-cast ends. Please consult for lead times.

Joining and Mounting Accessories

Nelly Neon 16 mounting clip by Offspring Profiles
Mounting clip

NN23-MC

Nelly Neon 16 mounting profile by Offspring Profiles
Aluminium mounting profile

NN23-MP-2M

Nelly Neon 16 end cap by Offspring Profiles
End cap

NN23-EC

Nelly Neon 16 by Offspring Profiles
End cap with feed & connector, side feed or top feed

NN23-TF (top feed) / NN23-SF (side feed)

Nelly Neon 16 mounting profile by Offspring Profiles
Flexible stainless steel mounting profile

NN23-FMP

Specification Sheet

Nellie Neon 23

Installation Instructions

NN23 installation instructions

Photometric File

NN23
