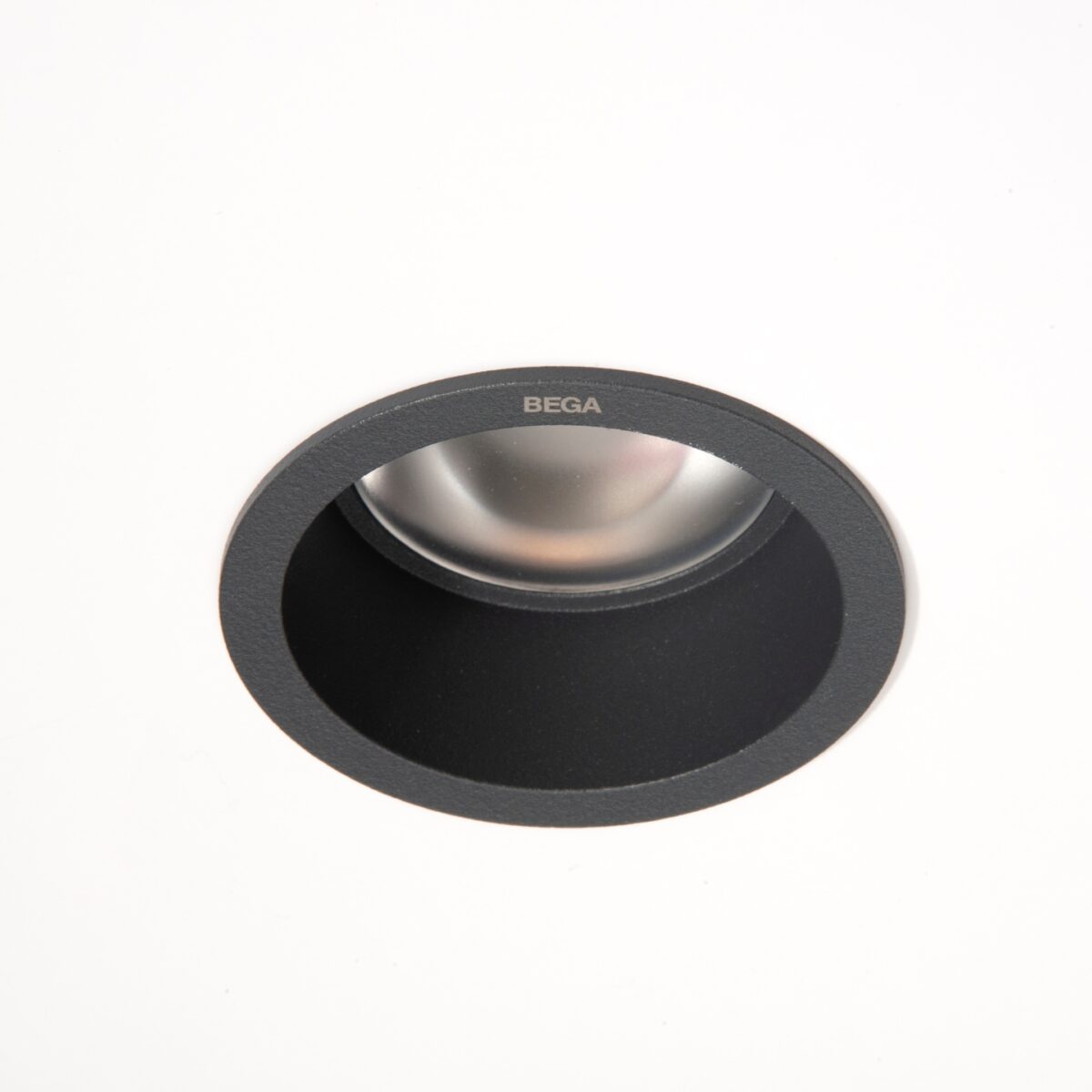

Recessed Ceiling Downlight

The series of our smallest recessed ceiling luminaires combines extremely small dimensions with a surprisingly high light output. These recessed ceiling spots are perfect for lighting situations where small points of light are used for creating a brilliant lighting atmosphere, for example under roof overhangs and cantilever plates, over patios or a house entrance. You can choose a model with symmetrically diffused or wide beam light distribution.
The recessed ceiling spots also show flexibility in terms of their electrical connection: A single power supply unit can feed several luminaires simultaneously. Installation housings for concrete ceilings are also available.
Highly versatile luminaires featuring top technology, efficiency and economy that shine with unobtrusive elegance.

Applications

Commercial and Residential exterior spaces

Luminaire Type

Ceiling, Recessed Downlights

Installation

Exterior

Finishes

Graphite | White

Colour Temperature

3000K

Material

Cast aluminium, aluminium and stainless steel | BEGA Unidure® coating technology | Polymer lens

Mounting Options

Recessed Ceiling

CRI

>80

Symmetrical Wide Beam

Variation
System Power
Lumens
Control
Beam Angle
IP
Dimensions

24786

4.8W 48V

435lm

DALI | Non Dim

25°

IP65

Ø 60mm x H 50mm

24788

5.6W 48V

644lm

DALI | Non Dim

25°

IP65

Ø 78mm x H 70mm

24790

5.8W

644lm

Non Dim

25°

IP65

Ø 78mm x H 70mm

Symmetrical Very Wide Beam

Variation
System Power
Lumens
Control
Beam Angle
IP
Dimensions

24787

4.8W 48V

380lm

DALI | Non Dim

60°

IP65

Ø 60mm x H 50mm

24789

5.6W 48V

588lm

DALI | Non Dim

60°

IP65

Ø 78mm x H 70mm

24791

5.8W

588lm

Non Dim

60°

IP65

Ø 78mm x H 70mm

Product variations may be available, please enquire.
